A CNC winding machine for short and medium-length line products should be selected from material, target length, receiving form and measurable acceptance criteria. The mapped PWD-M-15 reference lists a 7.5 kg machine, 700 × 260 × 300 mm dimensions, a 24 V / 10 A electrical field, 5–1000 r/min speed and a motor as the core component. The source title describes winding lengths up to 10 m for fishing line, cotton thread and enamel wire.
The reference does not establish a servo drive, automatic closed-loop tension system, universal winding accuracy or production-efficiency guarantee. BOYAN therefore treats speed, length, arrangement and line condition as application-specific results. The final configuration and test plan must match the buyer’s actual material, spool or fixture and required finished product.
Email yangle990706@gmail.com with material data, target length, supply package, receiving fixture, desired speed and sample availability. BOYAN will review the process before confirming a technical quotation.
CNC Winding Machine Overview
The CNC winding machine is a compact programmable platform for winding a defined length of fishing line, cotton thread, enamel wire or another approved material. Its core search intent is not continuous bulk rewinding; it is a controlled product or batch up to the source-described 10 m range, subject to fixture and acceptance review.
“Fully automatic” in the source title should be translated into a written sequence. The quotation must identify which steps are programmed and which remain manual: loading material, attaching the start, entering length, starting, winding, stopping, securing the end, cutting if included and removing the finished item.
5 Best Uses for the 10 m Reference Scope
- Fishing-line products: prepare a defined line length on an approved spool or fixture.
- Cotton-thread winding: control a repeatable batch when the thread path and surface handling are validated.
- Enamel-wire products: wind short lengths while protecting insulation at guides and fixtures.
- Sample and development work: compare materials, lengths, speeds and finished forms with recorded recipes.
- Repeat product families: manage fixtures and settings for approved materials within the application range.
These uses describe how a CNC winding machine can be evaluated. They do not guarantee that every material can run at maximum speed or that every geometry can reach 10 m without a specific fixture.
Verified Reference Specifications
| Item | Source-backed reference | Quotation note |
|---|---|---|
| Displayed model | PWD-M-15 | Confirm exact model on final documents |
| Machine mass | 7.5 kg | Does not define allowable fixture load |
| Machine dimensions | 700 × 260 × 300 mm | Confirm after options are fixed |
| Core component | Motor | Drive type belongs in the quotation |
| Electrical field | 24 V, 10 A | Confirm DC supply and adapter |
| Published speed | 5–1000 r/min | Validate with actual material and fixture |
| Source-described length | Up to 10 m | Define product form and tolerance |
| Named materials | Fishing line, cotton thread, enamel wire | Each material requires separate review |
| Carton field | 600 × 320 × 270 mm; 9.2 kg with box | Source also shows conflicting shipping data |
| Conformity | CE indicated for source configuration | Confirm documents for quoted machine |
The source also displays 76.5 × 31 × 34 cm and 17 kg gross in a separate packing area. Because that conflicts with the carton field, final packing must be confirmed on the approved packing list rather than assumed from either web field.

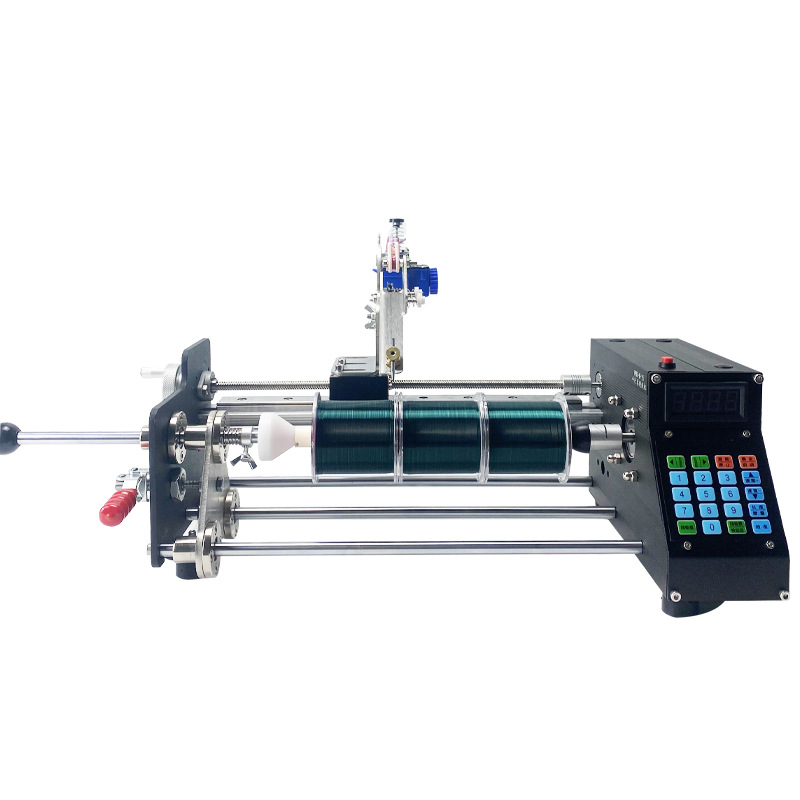

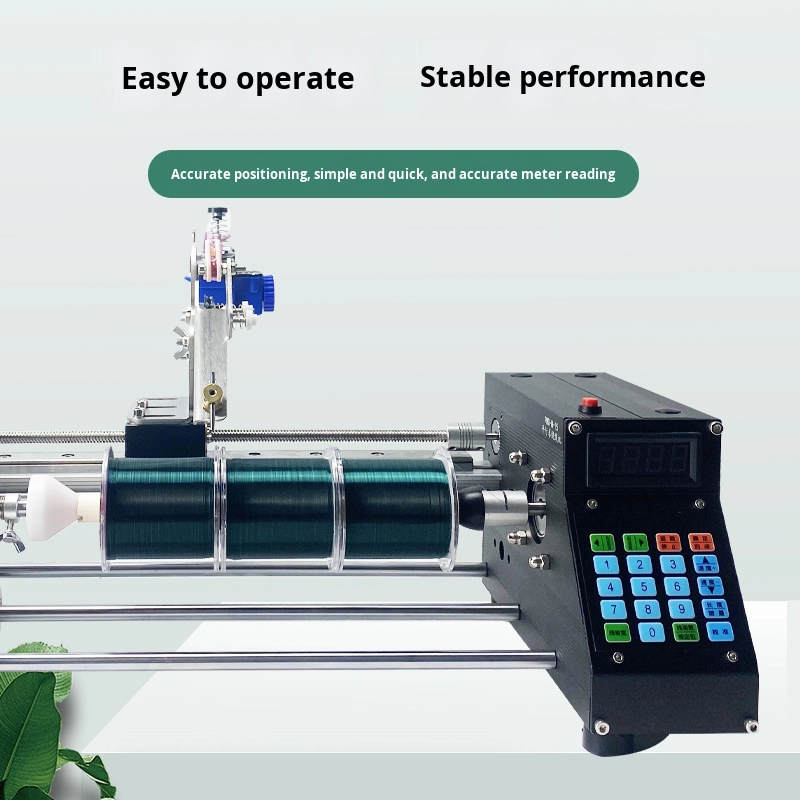

Machine Views for Application Review
Fishing Line Application Data
For fishing line, the CNC winding machine review should include monofilament or braided construction, nominal diameter, coating, colour, stiffness and minimum bend requirement. Provide sensitivity to scratching, flattening, twist or heat. State whether the finished product is a spool, loop, coil or another shape.
Define target length, tolerance, start attachment, end handling and any leader, connector or knot. A line that is flexible at short length can behave differently when wound around a small fixture, so representative samples and the actual receiving geometry are important.
Cotton Thread Application Data
Cotton thread can change tension and package behaviour with count, twist, finish, moisture and fuzz. Before configuring the CNC winding machine, provide thread count, construction, colour, surface treatment, breaking sensitivity and expected package. Identify lint-control or cleanliness requirements.
Guide finish, contact pressure and speed must suit the actual sample. If the finished thread is later used for sewing, embroidery, weaving or another process, define the downstream handling result that matters instead of assuming a generic “textile” specification.
Enamel Wire Application Data
Enamel wire requires insulation protection at guides, fixtures and crossing points. For the CNC winding machine, provide conductor material, bare diameter, overall diameter, insulation class, minimum bend requirement and allowed surface-defect criteria. State whether electrical testing is required after winding.
The source names enamel wire but does not publish a diameter range or insulation test. BOYAN should review guide material, fixture radius, start and end handling and sample results before confirming suitability. A visual check may be combined with agreed electrical or dimensional tests where required.
Defining the “Up to 10 m” Product
The source title describes winding up to 10 m, but it does not define the receiving shape, length tolerance or counting principle. For a CNC winding machine, specify whether 10 m is the maximum material length per finished item, the program setting or another process boundary.
Provide the normal product range, not only the maximum. A 0.5 m sample and a 10 m production item may require different fixtures or winding patterns. Acceptance should define the measurement reference, instrument, sample size and treatment of start or end allowances.
Supply Package Definition
The CNC winding machine must receive material from a stable supply package. Provide spool, cone, coil, hank or other format; flange and barrel dimensions; bore; winding width; payout direction; loaded mass and line length. State whether the package has its own brake or bearing.
The mapped source does not establish a supplied pay-off or tension device. Any external holder, brake, dancer, sensor or frame must be listed separately. Define how a new supply package is loaded and how the free end is controlled during changeover.
Receiving Fixture and Finished Form
Send a drawing of the receiving spool, mandrel, pins, hook, frame or custom fixture. For the CNC winding machine, include shaft or bore, working width, maximum outside diameter, empty and finished mass, start attachment and removal method.
The 7.5 kg machine mass does not define fixture or product capacity. BOYAN should confirm shaft load, retention, tool balance and clearance before speed is approved. If several finished sizes are planned, list each geometry and the expected changeover frequency.
Speed Range and Safe Operating Window
The published speed is 5–1000 r/min. This is a source-backed range, not a promise that every fishing line, cotton thread or enamel wire can run at 1000 r/min. The safe window for a CNC winding machine depends on fixture balance, loaded inertia, material construction, supply behaviour, guide path and guarding.
Provide target rotation speed, line speed, acceleration, deceleration and cycle duration. Start sample testing at a controlled setting and increase only while material condition and package build remain acceptable. Release the tested recipe rather than relying on the maximum catalogue value.
Length Measurement and Tolerance
The mapped page does not establish a counter type or guaranteed length tolerance. If the CNC winding machine must stop at a programmed length, define the measuring principle, target, tolerance and calibration method. State whether allowance for attachment, trimming or cutting is included.
Acceptance should compare the machine result with an agreed reference over representative material. Slip, stretch, tension and winding radius can affect calculated length. Record both displayed and measured values, then approve the method used for production.
Tension Requirement Without an Unsupported System Claim
The source does not publish a tension range, sensor or closed-loop architecture. The old BOYAN page overstated automatic tension control. For a CNC winding machine, provide the required material tension and allowable variation if it is a measurable acceptance item.
BOYAN can then review whether a friction brake, magnetic device, dancer, load cell or another method is needed. The quotation must identify the selected solution and whether it is manual, recipe based or closed loop. No tension function should be inferred from “fully automatic.”
Motor and Drive Boundary
A motor is listed as the core component. The source does not establish a servo motor. The final CNC winding machine quotation should identify motor type, controller, speed-setting method, direction control and feedback device, if any.
If the product requires indexed stopping, position repeatability or coordinated motion with another device, define the result and tolerance. BOYAN can then determine whether the reference drive is sufficient or an option is required.
Control Sequence and Recipes
Write the complete CNC winding machine sequence: identify material, load supply, install fixture, attach the start, select recipe, thread the path, confirm guards, start, wind, stop at target, secure the end and remove the product. Specify cutting only if it is included in the quoted machine.
List recipe fields such as material, target length, speed, direction, acceleration and deceleration. Define user permissions and revision control. Data storage, networking or export functions are not established by the mapped source and should be requested explicitly.
Application Data Checklist
- Material type, construction, diameter and coating
- Minimum bend, abrasion, twist and cleanliness limits
- Normal and maximum finished length
- Length tolerance and measurement method
- Supply-package drawing, direction and loaded mass
- Receiving fixture drawing and finished-product form
- Target rotation speed, line speed and cycle time
- Tension range and control method, if required
- Start attachment, end handling and cutting scope
- Required alarms, records, labels and tests
- Destination electrical supply and adapter requirement
- Samples available for trial
Email the checklist to yangle990706@gmail.com. Complete data lets BOYAN configure the CNC winding machine around an approved 10 m-or-shorter product family.
Electrical Integration for 24 V / 10 A
The source lists 24 V and 10 A. Confirm whether the final CNC winding machine is powered directly from DC or through an adapter, and provide destination mains voltage, frequency, plug, grounding and protection. The final nameplate and electrical diagram govern installation.
Do not infer compatibility from the short source field alone. The quotation should identify adapter, controller, motor, connectors and auxiliary devices. Route cables away from rotating fixtures, material paths and operator handling zones.
Workstation and Installation Planning
The reference CNC winding machine is 7.5 kg and 700 × 260 × 300 mm before final fixtures are confirmed. Plan a stable bench, suitable working height, lighting and clearance for supply package, material route, guard and finished-product removal.
The source shows conflicting packing fields: 600 × 320 × 270 mm / 9.2 kg with box and 76.5 × 31 × 34 cm / 17 kg gross. Use the approved packing list for logistics. Check bench capacity and operating envelope rather than relying only on carton size.
Sample Trial Plan
- Record material type, lot, diameter and condition.
- Measure the supply package and receiving fixture.
- Install and retain the approved tooling.
- Thread the documented contact path.
- Enter the preliminary length and speed recipe.
- Start at a controlled low setting.
- Increase within the planned test range.
- Measure length, cycle time and any tension item.
- Inspect surface condition and finished geometry.
- Repeat after changeover and record the accepted recipe.
The CNC winding machine trial should include the shortest, longest and most difficult planned material where practical. Change one important variable at a time.
Factory Acceptance Test
FAT should confirm PWD-M-15 model text, 7.5 kg reference machine, dimensions, motor, electrical supply, fixtures, guides, controls and safety functions. Run the buyer’s material and finished form whenever possible. For the CNC winding machine, measure length, speed, cycle, surface condition and repeatability according to the quotation.
Define instruments, sample size and acceptance limits before testing. Record deviations and corrective actions. Video may document the cycle, but signed results and approved samples should control acceptance.
Safety Review
Rotating fixtures, loose line, pinch points and sudden material break create hazards even on a compact CNC winding machine. The final configuration should be reviewed for fixture retention, guarding, emergency stopping, safe restart, electrical protection and operator access.
The buyer must integrate the machine into the actual workplace and applicable regulations. Official OSHA machine-guarding guidance is a useful reference for common mechanical hazards; destination-specific requirements and the final risk assessment still govern the project.
Commissioning Checklist
- Verify machine, tooling, electrical data and documents.
- Inspect bench mounting, guarding, cables and clearance.
- Confirm supply package, fixture and material path.
- Load the approved recipe and restrict unauthorized edits.
- Test normal start, stop and agreed abnormal response.
- Run the accepted material and length.
- Measure in-scope length, speed and tension criteria.
- Release production only after results are recorded.
Commissioning should reproduce the accepted CNC winding machine trial. A change in material, length, fixture or supply package may require a new recipe and verification.
Operator Training and Changeover
Training should cover material identification, package inspection, fixture retention, threading, recipe selection, normal stopping, abnormal response, end handling and finished-product removal. For the CNC winding machine, use a first-piece check after every changeover.
Document adapters, tools, guide positions, recipe number and approved sample for each product family. Clear changeover control reduces mixed lots, damaged enamel or thread and use of an incorrect length or speed.
Quality Control and Traceability
Connect each finished product or batch to material lot, supply package, fixture, recipe, operator and inspection result. A CNC winding machine supports repeatability only when material identity and settings are controlled together.
Record target and actual length, package dimensions, surface inspection and any downstream test at the agreed frequency. Define nonconforming-product handling and rework. Retain approved samples when visual criteria are important.
Documentation and CE Confirmation
CE is indicated for the source configuration. Final CNC winding machine documentation may change with fixture, guard, adapter, controls and destination. Ask BOYAN to list the declaration, manuals, labels, drawings, electrical information and FAT report supplied with the exact quoted machine.
The documents should also confirm PWD-M-15 model text, machine dimensions and mass, final packing and included accessories. Commercial warranty or service terms belong in the BOYAN offer and are not copied from the source listing.
Maintenance Planning
Inspect the CNC winding machine fixture, spindle, guides, guards, fasteners and cables before production. Keep material-contact surfaces clean. Investigate abnormal vibration, noise, heat, length drift or surface damage before continuing.
Set intervals from speed, duty cycle, material and environment. Keep approved wear parts. After motor, controller, guide, fixture or counter service, repeat the checks that could affect speed, length or material condition.
Compare Related BOYAN CNC Winding Equipment
Browse the BOYAN Winding Machines category for the full equipment group. For a compact fishing-line machine with a source-published maximum 2 mm line diameter, 1–1000 r/min and multi-reel winding review, compare the CNC Fishing Line Winding Machine.
Use our winding machine selection guide to compare control, material, package, speed, tension and application data before requesting a configuration.
This page instead focuses on a PWD-M-15 CNC winding machine for fishing line, cotton thread and enamel wire products described up to 10 m, with a 5–1000 r/min reference range.
Quotation Workflow
- Define the material: construction, diameter, coating and handling limits.
- Define the product: length, tolerance, fixture and end handling.
- Map the supply: package drawing, direction and loaded mass.
- Set controls: speed, measurement, tension and sequence.
- Approve validation: samples, FAT method and documents.
Email yangle990706@gmail.com with “CNC Winding Machine Enquiry” in the subject. BOYAN will prepare a scoped technical quotation after reviewing the application.
Frequently Asked Questions
What is the reference model?
The mapped source displays PWD-M-15. Confirm the exact model on the final quotation and nameplate.
What materials are listed?
The source names fishing line, cotton thread and enamel wire. Each material requires its own guide, fixture, speed and acceptance review.
What is the published speed?
The CNC winding machine source lists 5–1000 r/min. The approved operating window depends on actual material and fixture.
Is the maximum length 10 m?
The source title describes winding up to 10 m. The finished form, tolerance and measuring method must be defined before confirmation.
Does it include a servo motor?
The source lists a motor but does not establish a servo drive. Motor and controller type will be stated in the quotation.
Is tension controlled automatically?
No automatic closed-loop tension architecture or range is published. Send a measurable requirement if tension control is needed.
What are the machine dimensions?
The source lists 700 × 260 × 300 mm and 7.5 kg. Final values depend on approved fixtures and options.
What is the packing size?
Two conflicting source fields are present, so final packing size and gross weight must be confirmed on the approved packing list.
How do I request a quote?
Send material data, supply-package and fixture drawings, length and speed target, electrical data, acceptance criteria and sample availability to the enquiry email on this page.
Request a CNC Winding Machine Review
The right CNC winding machine is the configuration that converts the buyer’s actual material into a defined product length without unsupported drive, tension or accuracy promises. BOYAN uses the verified PWD-M-15, 7.5 kg, 700 × 260 × 300 mm, 24 V / 10 A and 5–1000 r/min reference data as the engineering baseline.
Send your application package for review. BOYAN will define tooling, controls, safety, test plan, documentation and commercial offer around the approved fishing-line, cotton-thread or enamel-wire process.
Reviews
There are no reviews yet.
