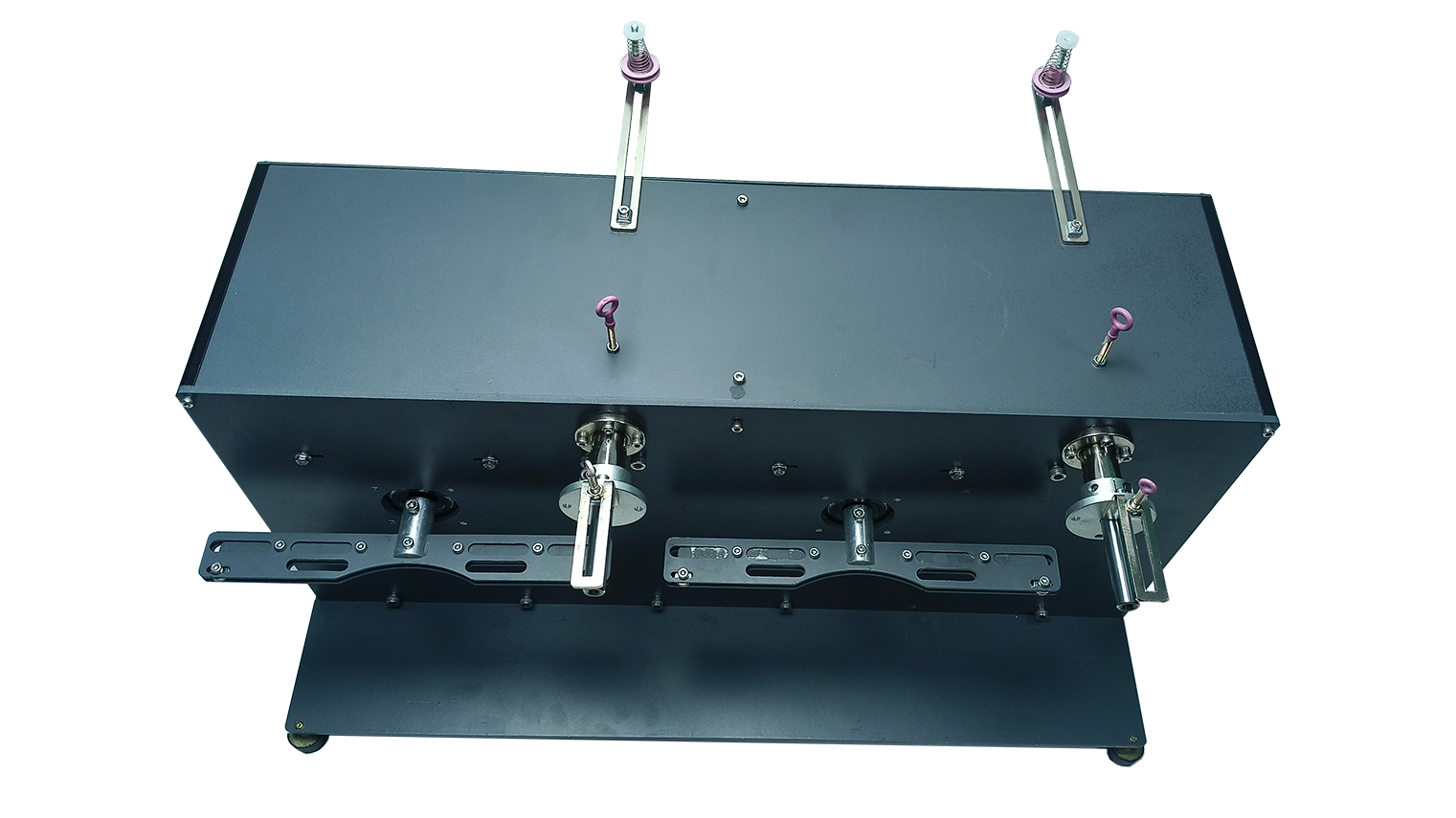

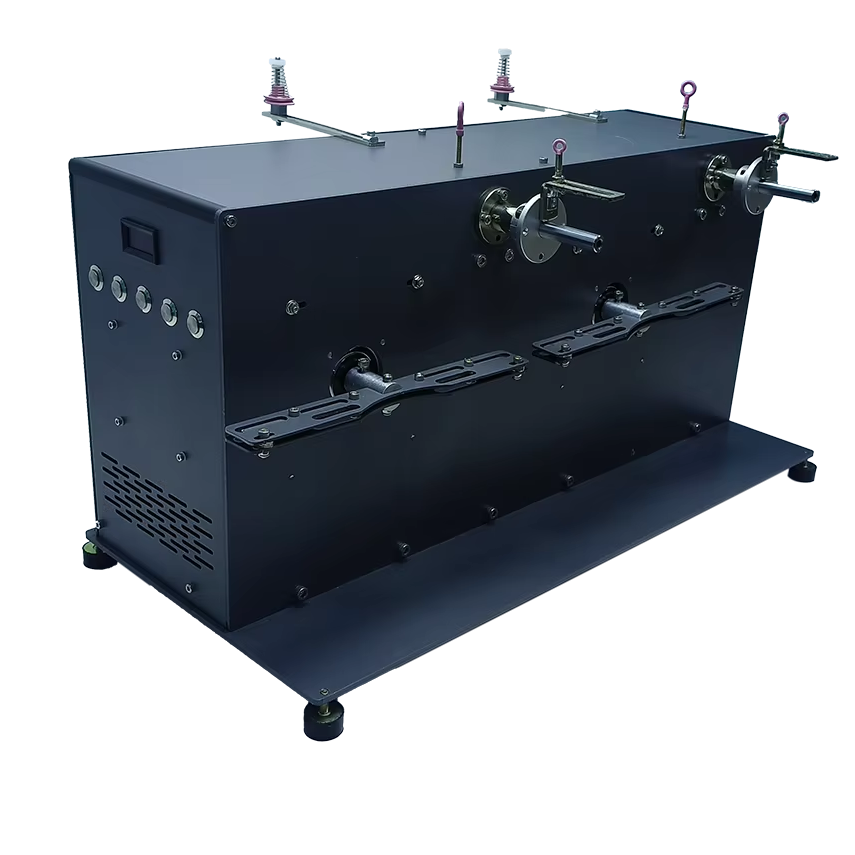

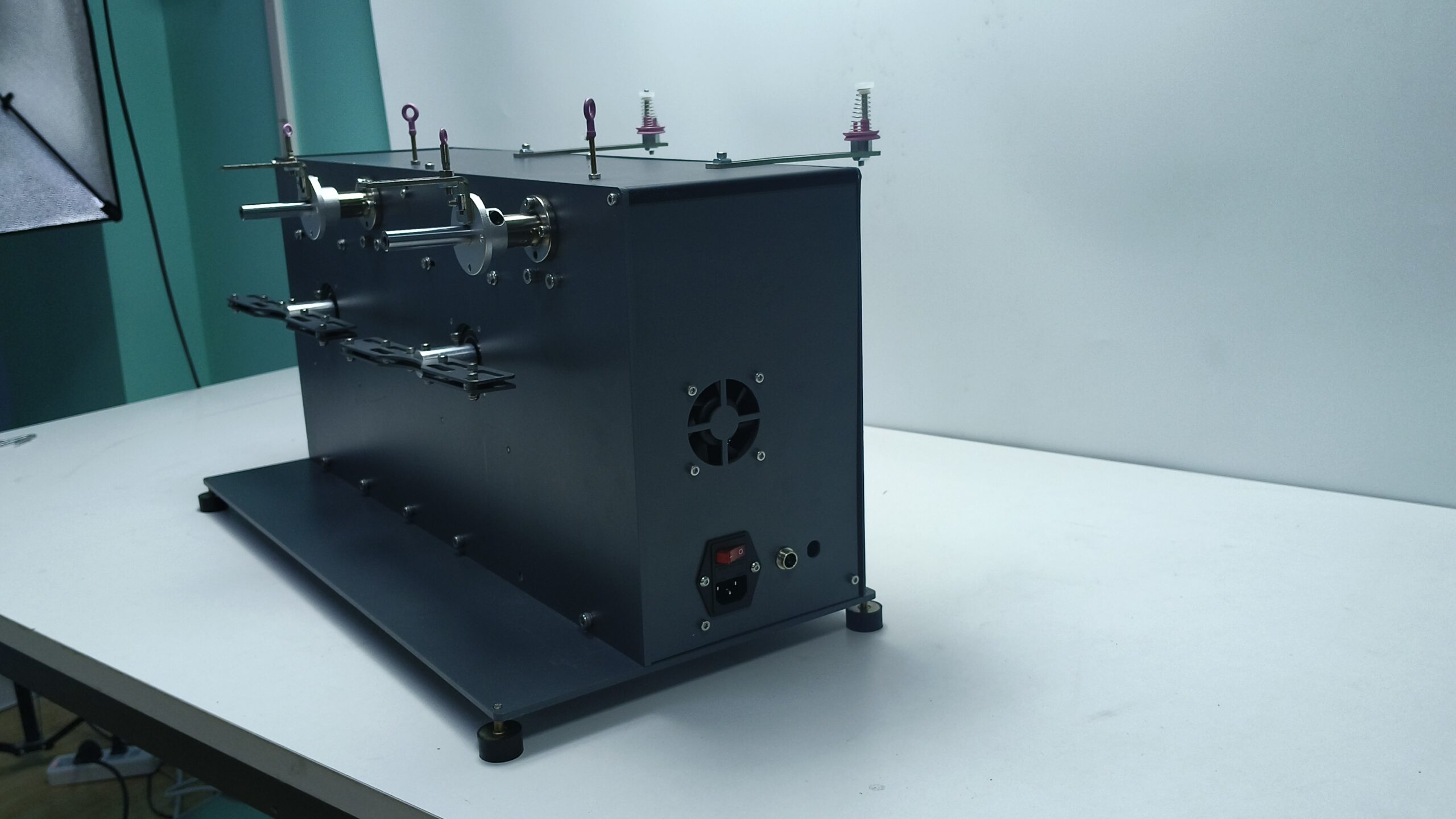

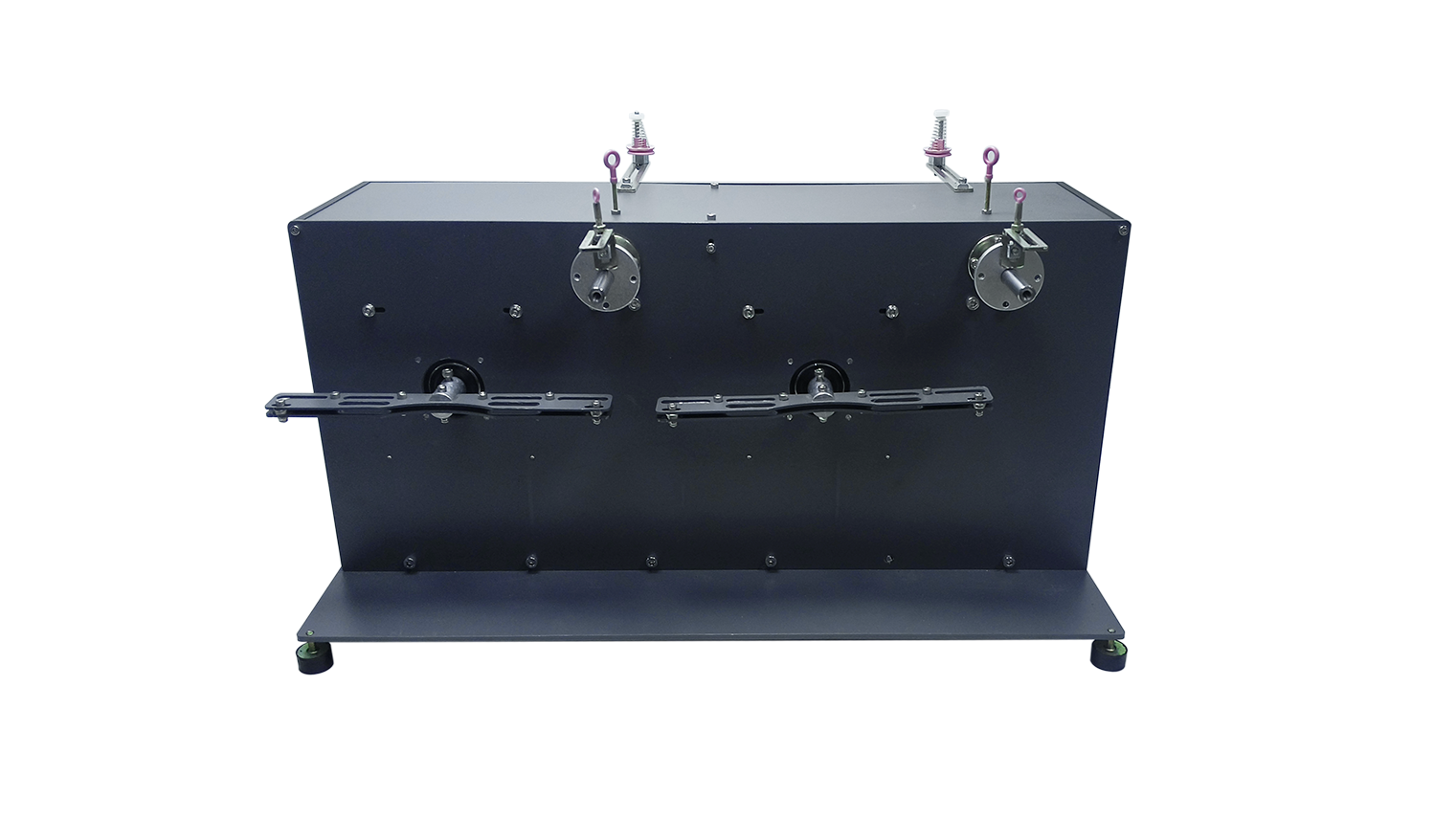

The seedling hook winding machine is designed for approved agricultural greenhouse hook production. Model ST0200 combines two working stations, one-key start and a visual operating interface so a buyer can develop a controlled process around a defined seedling hook, material and acceptance sample.
Seedling Hook Winding Machine Specifications
- Model: ST0200
- Working arrangement: dual station for two hook winding operations
- Operation: one-key start with a visual operating interface
- Core component: motor
- Machine weight: 30.6 kg
- Machine dimensions: 635 × 315 × 370 mm
- Application: approved seedling hooks used in agricultural greenhouse planting
- Configuration: customizable for the reviewed hook and winding requirement
The values above describe the documented configuration. Final tooling, hook range, control program, electrical scope and acceptance method must be confirmed against the buyer’s drawing or physical sample.
How the Dual-Station Workflow Is Evaluated
The dual-station arrangement allows two groups of hooks to be processed within the machine’s working layout. This provides a basis for higher production efficiency than a comparable single working position, but the final output depends on the hook design, loading and unloading, winding sequence, operator actions and inspection method.
Start by mapping the complete cycle. Define how the hook blank and winding material are loaded, how the part is located, how the one-key cycle begins, how the finished hook is removed and which features are inspected. The seedling hook winding machine should be reviewed as one production process rather than by the winding motion alone.
Both stations must use controlled references. Identify the fixture, program and drawing for each position. During a sample trial, compare parts from the two stations using the same acceptance criteria. If a difference appears, check material, loading, fixture location and program before changing the process.
A dual-station machine does not automatically double total shift output. The production target should include material preparation, operator handling, first-off inspection, normal sampling and changeover. BOYAN will confirm project results only after the approved hook and process have been reviewed.
Define the Seedling Hook and Winding Material
A useful enquiry begins with the finished seedling hook. Send a dimensioned drawing or a physical sample and identify the hook profile, winding location, number of wraps or winding length, start and finish position, finished dimensions and any feature that interfaces with greenhouse support material.
Identify the material to be wound. State its material type, diameter or cross-section, coating, stiffness and supplied package. If the surface must not be scratched or the material can deform during winding, include that limitation. Photos should show the normal production material, not only a short hand-prepared piece.
If the hook body and winding material are separate components, describe both. Explain how the components arrive at the seedling hook winding machine, how they are oriented and what prevents incorrect loading. A mating-part or greenhouse application photo can help clarify the functional position without replacing a dimensioned drawing.
Mark critical tolerances clearly. Do not apply an unnecessarily tight tolerance to every dimension. Identify the features that affect the hook’s use, assembly or winding security, and define a practical inspection method for production.
One-Key Start and Visual Operation
One-key start is a documented feature of the ST0200 configuration. The visual interface is intended to make the operating sequence easier to set and understand. The exact screens, adjustable parameters and stored programs depend on the approved project and should be listed in the final specification.
Simple operation still requires a controlled setup. The operator must use the correct hook, material, fixture and program. A first-off sample should be inspected after startup, changeover or an approved program revision. One-key start should begin a verified cycle, not replace product identification and process checks.
Training should cover loading, program selection, normal stop, abnormal response, part removal and inspection. The source information indicates that a visual interface, manual or video guidance can support a new operator. The buyer should confirm the delivered training and documentation for the exact seedling hook winding machine configuration.
Access to program changes should be controlled. Store a reference for every approved hook and record any authorized adjustment. This reduces the risk of an operator using the right fixture with the wrong program or changing a setting without updating the acceptance record.
Custom Tooling and Hook Changeover
Customization is available for the reviewed application. The custom scope may include the hook fixture, material guide, winding position and program logic. It does not mean that every hook shape or material is supported without evaluation.
Provide a part matrix when one machine must run several hooks. For each item, list the drawing revision, hook material, winding material, fixture, program and accepted sample. BOYAN can then identify which hooks share a common arrangement and which need separate tooling or a trial.
For changeover, clear the previous components, install the identified fixture, select the controlled program and verify the new drawing. Run a first-off sample at each station and compare the result with the approved reference before releasing the batch.
Fixture design should consider repeatable location and safe removal of the wound hook. If the product can be bent or marked during unloading, define an acceptable handling method during the trial. Tooling wear and cleanliness should be included in routine inspection for the seedling hook winding machine.
Greenhouse Seedling Hook Application Review

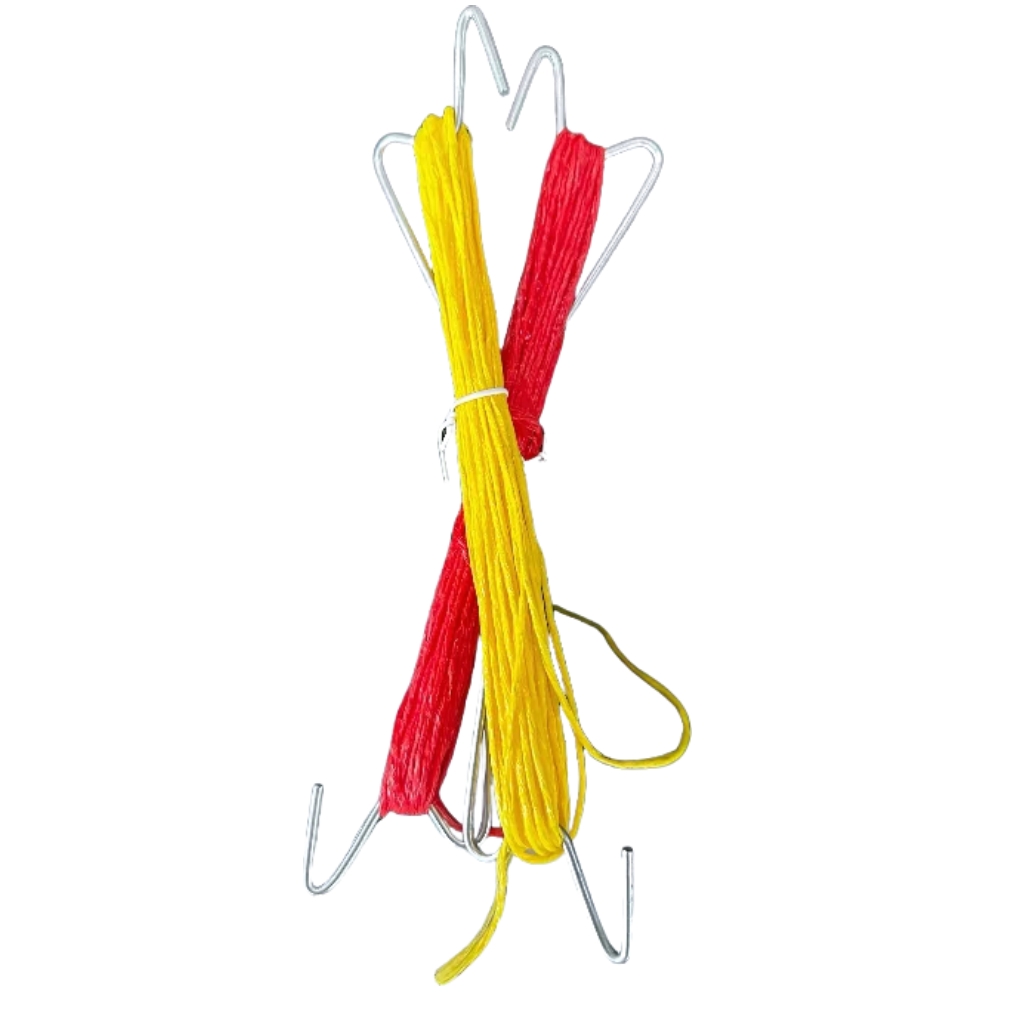

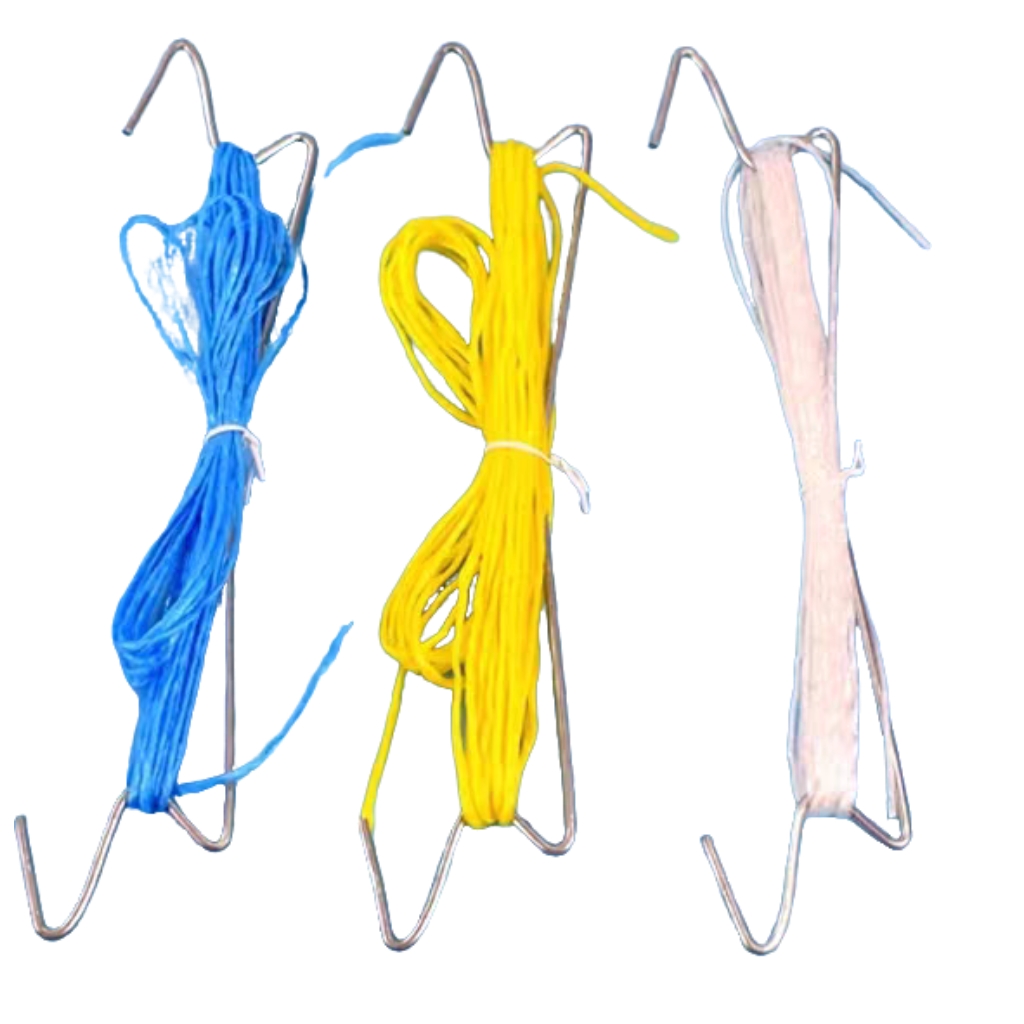

The documented use is production of seedling hooks for agricultural greenhouse planting. Application details can vary by crop support system, hook shape, line material and grower practice. The machine selection must therefore be based on the buyer’s actual hook rather than a generic greenhouse label.
Explain how the finished hook will be used and which dimensions affect that use. If the wound section retains or positions another line, show the assembled condition. Identify any functional test required after winding, such as visual security, dimensional fit or a buyer-defined handling check.
Environmental or agricultural claims beyond the machine’s winding task must be evaluated by the buyer. BOYAN can review whether the ST0200 configuration fits the documented hook-production process; it does not establish crop performance or suitability of the finished hook material for every greenhouse environment.
Plan a Representative Sample Trial
A sample trial is recommended when hook geometry, material stiffness, winding security or removal from the fixture cannot be confirmed from drawings alone. Agree on the objective before shipping samples. The objective may include verifying winding position, wrap count or length, finished dimensions, visual condition and consistency between the two stations.
Send enough normal production hooks and winding material for setup and repeated samples. Label every component and link it to the correct drawing. If the project includes more than one hook size, identify which variant is tested first and which variants define the required range.
Define acceptance with measurable criteria. Record the dimension, tolerance, measuring tool and sample quantity. For visual requirements, provide close-up references of accepted and rejected parts. If a functional handling check is important, describe the test and pass condition.
The trial record for the seedling hook winding machine should identify the station, program, fixture, material batch, drawing revision and result. Comparing multiple samples from both stations provides more useful evidence than one selected demonstration part.
A video can document loading, one-key start, winding and unloading, but it should support rather than replace the drawing and inspection record. Any output measurement must state which operator and inspection steps are included.
Prepare the Email Enquiry Package
Use a subject such as “Seedling Hook Winding Machine Enquiry – Hook Size – Country.” State your company, greenhouse hook application, installation country, expected project timing and the number of hook variants.
Attach or list the following information:
- Seedling hook drawing, dimensions, material and sample photos
- Winding material, diameter or cross-section, coating and supply format
- Winding position, direction, wrap count or length and lead details
- Critical tolerances and visual or functional acceptance criteria
- Required quantity per shift and expected changeover frequency
- Installation voltage, frequency and destination
- Sample availability and proposed trial evidence
- Number of fixtures or programs needed for the product family
Email the complete package to yangle990706@gmail.com. Complete data lets BOYAN focus the reply on application fit, tooling, controls, sample testing and the final commercial scope.
Review the Technical Quotation
The quotation should identify model ST0200 and the reviewed hook or drawing revision. It should separate documented features from project-specific items. The documented reference includes dual stations, one-key start, a visual interface, motor core component, 30.6 kg machine weight and 635 × 315 × 370 mm machine dimensions.
Project-specific items may include hook fixtures, material guides, program functions, electrical options and acceptance evidence. The quotation should mark any value that remains subject to a sample trial. Do not rely on a general “high precision” statement without an agreed feature, tolerance and inspection method.
If output is important, request a defined cycle study using the approved hook and material. Include loading, winding, unloading and required inspection. This gives the buyer a result connected to the actual seedling hook winding machine configuration.
Before shipment, agree on the evidence to review, such as sample measurements, station comparison, photos, video or an inspection record. Commercial terms and the technical acceptance method should refer to the same approved scope.
Installation, Commissioning and Routine Control
Reserve space for the listed machine dimensions and additional working room for components, operator access, guarding and any auxiliary equipment. The stated machine weight is 30.6 kg; final handling and installation must follow the packing and technical documentation supplied with the approved configuration.
At commissioning, compare the delivered machine, fixtures and program list with the specification. Verify visual-interface functions, one-key start, station operation and normal or emergency stop procedures with authorized personnel. Run approved components and inspect a first-off part from each station.
Create a controlled production record for every hook: program, fixture, hook and winding material, drawing revision and accepted sample. Record authorized changes and abnormal events. If a station produces a different result, pause and investigate the setup instead of compensating with an undocumented adjustment.
Routine care must follow the delivered maintenance information. As general process discipline, keep fixtures and material-contact areas clean, inspect locating surfaces for wear and investigate abnormal resistance or inconsistent winding. Do not modify electrical, control or safety functions without an approved review.
When the Seedling Hook Winding Machine Fits
This seedling hook winding machine is a strong candidate when the project needs two working stations, one-key start, a visual interface and customization around an approved agricultural greenhouse seedling hook.
A different BOYAN winding platform may be more suitable when the product is not a seedling hook, needs a different winding path, requires a larger fixture or uses an automation sequence outside the ST0200 scope. Compare machines using verified product data and sample results rather than names alone.
Review other BOYAN Winding Machines and the winding machine selection guide. For another dual-motor configuration, see the automatic dual motor winding machine. Buyers defining machinery responsibilities can also review the European Commission’s official machinery overview.
Balance and Compare the Two Working Stations
A dual-station process should be checked for consistency, not assumed to be identical. Use the same approved hook and winding material at both positions, then compare the winding location, number of wraps or length, finished dimensions and visual condition. Record which station produced each sample so a difference can be traced.
Keep station-specific fixtures clearly identified. If the fixture components are interchangeable, use a controlled marking and inspection method. If they are not interchangeable, prevent installation in the wrong position. The program and setup record for the seedling hook winding machine should show the correct station arrangement.
Review the operator’s movements as part of the cycle. Component trays, accepted-part containers and rejected-part areas should support correct loading and separation. A practical workstation layout can improve repeatability without changing the verified machine functions.
When output is studied, collect several consecutive cycles and state the included work. Note whether one operator loads both stations, whether inspection occurs during the cycle and how changeover is treated. This produces an application-specific result instead of an unsupported website promise.
Create a Seedling Hook Quality Plan
Turn the approved sample into a short production quality plan. Identify the critical dimensions, winding feature, visual standard, sample frequency and response to a failed check. The plan should be simple enough for normal production but specific enough to prevent an unacceptable hook from being treated as a normal variation.
For the first-off check, inspect a part from each station after startup or changeover. Compare it with the controlled drawing and reference sample. If both parts pass, routine production can begin under the agreed sampling plan. If a part fails, stop the affected process and investigate material, fixture, program and loading.
Retain records by hook part number and material batch. When a greenhouse customer changes the hook design or winding requirement, create a new drawing revision and review the effect on fixture and program. Do not overwrite the previous approved setup until the new version has passed a trial.
The quality plan should also address mixed components. Similar hook blanks or winding materials can be difficult to distinguish. Use labels, dedicated containers or another controlled identification method before parts reach the seedling hook winding machine.
Repeat Orders and New Hook Variants
For a repeat machine, include the original BOYAN reference, approved hook drawing, fixture list and program list in the enquiry. State whether the material, output target or installation power has changed. This helps BOYAN compare the new request with the previously accepted configuration.
For a new hook variant, send a change package rather than only a photograph. Mark the changed dimensions, winding location, material and required quantity. BOYAN can then assess whether an existing fixture and program can be reused, whether a new tool is required or whether the variant needs another sample trial.
Keep a master list of approved hook families. The list can show the drawing, winding material, fixture, program, trial date and acceptance sample. This reduces setup errors and gives future enquiries a clear technical history.
Final Buyer Checklist Before Order Approval
- Is model ST0200 identified in the technical scope?
- Are the hook and winding material linked to current drawings or samples?
- Are dual-station tooling and program responsibilities clearly listed?
- Are the 30.6 kg weight and 635 × 315 × 370 mm machine dimensions understood as configuration references?
- Are one-key start and visual-interface functions defined for the quoted program?
- Are critical tolerances and the station-comparison method written down?
- Is any output result tied to an agreed cycle and sample?
- Are power, destination, installation, training and documentation requirements confirmed?
- Is the pre-shipment evidence and final acceptance method agreed?
Send unresolved items to yangle990706@gmail.com. A complete checklist keeps the seedling hook winding machine quotation, trial and production setup tied to the same verified hook application.
Frequently Asked Questions
Can both stations wind at the same time?
The documented design uses two stations for two hook winding operations. Final timing and operator workflow depend on the approved components and configuration.
Is one-key start available?
Yes. One-key start and a visual operating interface are documented features. BOYAN will confirm the final screens and program scope.
Can the machine be customized for another hook?
Customization is available after the hook, material, fixture and winding requirement are reviewed. Send a drawing and physical sample where possible.
What determines production output?
Output depends on hook geometry, winding sequence, loading, unloading, operator actions and inspection. Request a defined trial using your approved parts.
How do I request a quotation?
Email yangle990706@gmail.com with the hook drawing, winding material, target quantity, installation power and sample information.
