Frog button winding machine is a compact BOYAN platform for producing or preparing compatible traditional Chinese frog-button, cheongsam-button, disk-buckle and bracelet shapes through a defined winding process. The verified reference lists model PWD-M-15, a machine weight of 6.6 kg, a motor as the core component and overall dimensions of 700 × 260 × 300 mm. The source title describes fully automatic high-speed disk-buckle winding and intelligent winding for cheongsam buttons and bracelets.
Frog buttons vary in cord, knot pattern, size and finishing method. Some are formed from a prepared cord; others require manual knotting, sewing or bonding after winding. BOYAN will not assume that one machine completes every decorative knot. Send the product drawing, accepted sample, material and required cycle to yangle990706@gmail.com for an engineering review.
Frog Button Winding Machine: Quick Selection Guide
A frog button winding machine may fit a product when the cord path, decorative shape, fixture and end treatment can be defined. The reference supports a motor-driven machine and names disk buckles, cheongsam buttons and bracelets. It does not publish PLC, servo, touchscreen, automatic feed, position tolerance, winding speed, tension or production rate.
- Model: PWD-M-15.
- Machine weight: 6.6 kg.
- Machine size: 700 × 260 × 300 mm.
- Core component: motor.
- Source applications: disk buckles, cheongsam buttons and bracelet winding.
- Open fields: cord range, pattern, tooling, controls, electrical input, speed and output.
The source listing also displays an “EU standards compliant” label. That label is not sufficient evidence of a declaration, certificate or model coverage. BOYAN will confirm applicable documentation for the supplied configuration before it is used in a compliance decision.
Verified Specification and Documentation Boundary
| Item | Available reference | Required confirmation |
|---|---|---|
| Model | PWD-M-15 | Final quotation and nameplate |
| Machine weight | 6.6 kg | Net weight of ordered build |
| Machine size | 700 × 260 × 300 mm | Approved outline and service space |
| Core component | Motor | Motor rating, drive and controls |
| Named products | Disk buckle, cheongsam button and bracelet | Approved sample and product drawing |
| Automation wording | Fully automatic/high-speed/intelligent in source title | Actual cycle steps and numerical rate |
| EU label | “EU standards compliant” displayed | Documents, model scope and destination requirements |
| Package size | 76.5 × 31 × 34 cm | Final export packing data |
| Package gross weight | 17 kg | Final shipping weight |
| Electrical input | Not published | Voltage, phase, frequency and power |
These facts are useful for initial comparison, but they do not describe product tooling or performance. A technical proposal for the frog button winding machine should attach drawings, material samples and an acceptance plan.
What Is a Frog Button Winding Process?
A frog button, also called a Chinese knot button or cheongsam button, may include a loop, knot, decorative head and matching closure. Manufacturing methods differ. Winding can form a repeatable cord shape on a fixture, while knotting, sewing, trimming, heat treatment or adhesive work may occur before or after the machine cycle.
The source title uses “disk buckle” and “cheongsam button” language but does not describe the mechanism. BOYAN first maps the required steps: load material, anchor the cord, wind the pattern, stop, secure the shape, cut or release, unload and finish. Each step is marked manual, automatic or external.
If the product is a bracelet rather than a garment button, provide inside diameter, cross-section, pattern and closure. A visually similar circular winding process may still require different tooling and tension.
Product Geometry and Tooling
Provide overall width, height, thickness, loop size, knot dimensions, symmetry tolerance and the location of cord ends. A physical accepted sample is especially useful because decorative products can be difficult to describe only with dimensions.

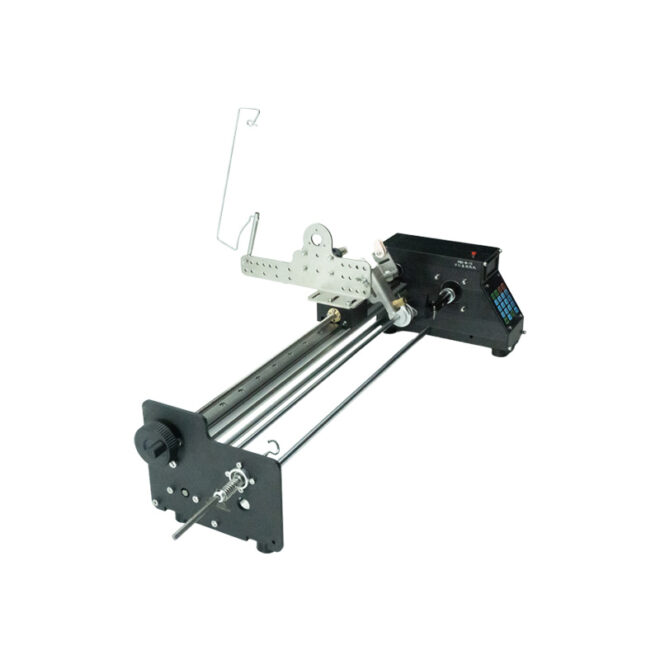

The fixture should hold the cord path while allowing removal without distortion. If several button sizes or patterns are required, list the full range and lot size. BOYAN will identify whether change parts, adjustable pins or separate tools are needed. The 700 × 260 × 300 mm machine size does not establish the supported product envelope.
Tooling is part of the finished-product process and should be tested with the frog button winding machine. The quotation should state the included product patterns and the changeover method.
Cord and Thread Requirements
The source record does not publish a material list. Cheongsam button cords can differ in fiber, braid, diameter, stiffness, surface, elasticity and heat response. Silk-like decorative cord, cotton cord, polyester braid and other materials may require different handling. Compatibility is confirmed only after sample review.
- Provide fiber or polymer and braid construction.
- State diameter or width and normal tolerance.
- Describe stiffness, twist, elasticity and minimum bend radius.
- Identify coating, sheen, metallic elements, adhesives or heat sensitivity.
- State acceptable marks, flattening, fuzzing and color transfer.
- Send representative colors and difficult materials.
A frog button winding machine trial should observe cord slip, surface marking, shape retention and ease of removal. A material that winds well may relax after unloading, so the inspection time should be agreed.
Pattern, Position and Appearance
Decorative buttons depend on symmetry and consistent visual shape. Define pin positions, wrap count, crossing order, loop orientation, cord overlap and end location. If winding is only one stage of knot forming, provide the downstream manual or automatic steps.
The old page claimed precision positioning and uniform output, but no numerical tolerance or control architecture is published. BOYAN uses an approved sample, dimensions and inspection method instead of an unsupported precision claim.
Possible criteria include maximum dimensional variation, loop opening, visible gap, symmetry, surface damage and pull strength after finishing. The buyer should identify which defects cause rejection.
Five Products to Evaluate
1. Cheongsam Frog Buttons
The source title directly supports cheongsam-button winding. Provide the button pattern, loop and knot dimensions, cord and finishing method.
2. Disk or Pan Buckle Shapes
A disk-shaped decorative buckle can be evaluated when the winding path and fixture positions are defined. Source terminology should be matched to a real sample.
3. Decorative Knot Button Bases
The frog button winding machine may form a repeatable cord base that is finished by another operation. The automation boundary must be documented.
4. Bracelet Winding
The source title names bracelets. Provide inside diameter, material, winding pattern, closure and required shape retention.
5. Custom Circular Accessories
Other decorative cord products can be reviewed from samples and drawings. Feasibility depends on size, material, fixture and end treatment.
Automation Scope and High-Speed Claim
“Fully automatic” and “high speed” appear in the source title, but no cycle description or numerical output is published. A technical proposal must state what the operator loads, threads, starts, secures, cuts, removes and finishes.
If automatic material feeding, cutting, knotting, sewing, bonding or discharge is required, list each function. The reference does not prove that they are standard. Sensors for missing product, cord break, jam and incomplete winding should also be defined.
Production rate should be measured as accepted finished pieces per hour under representative conditions. The frog button winding machine trial should record cycle time, manual finishing, changeover, defects and rework.
Controls and Electrical Requirements
The verified record identifies a motor only. PLC, servo, touchscreen and programmable positioning in the old page have no supporting parameter data and are removed. BOYAN will state the actual motor, drive, controls and operating sequence in the proposal.
Buyers should provide voltage, phase, frequency and plant electrical standard. If recipes, counters, password levels, fault history, barcode selection or line integration are needed, list them separately. A compact automatic machine does not automatically include those functions.
Control acceptance should include start, stop, emergency stop, restart after interruption, invalid setup and normal fault recovery.
EU Label and Compliance Review
The source page displays an “EU standards compliant” label. Before relying on it, request the declaration, certificate or test document, check the model, manufacturer, applicable directives or standards and any configuration limitations. Destination legal requirements and the buyer’s internal standards may add obligations.
Changing tooling, guards, controls or automatic feeders can affect the technical scope. BOYAN will identify available documents for the ordered frog button winding machine. This page does not represent a marketplace label as independent proof of compliance.
Safety and Operator Access
Rotating fixtures, pins, shafts and cord can create entanglement and pinch hazards. Automatic feeding or cutting, if included, adds further risks. The installation requires suitable guards, emergency stops, safe setup procedure, isolation and trained operators.
The buyer should assess loading, threading, anchoring, automatic winding, clearing a jam, cutting or securing ends, unloading and maintenance. General principles are available in the OSHA machine-guarding guidance; destination regulations govern the final design.
Never place fingers near rotating fixture pins to guide cord. Stop and isolate the frog button winding machine before correcting a pattern or changing tooling.
Recommended Sample Trial
- Approve the product: identify the exact button, buckle or bracelet sample.
- Verify material: record cord construction, diameter, lot and condition.
- Map the cycle: separate manual, automatic and downstream finishing steps.
- Set criteria: define dimensions, symmetry, surface, strength and output.
- Install tooling: check pins, retention, release and guard clearance.
- Run slowly: observe anchoring, crossings, slip and product distortion.
- Increase rate: maintain accepted shape and surface condition.
- Finish and condition: complete downstream steps and inspect after the agreed time.
- Repeat: demonstrate multiple cycles and a normal pattern change.
Retain accepted samples with the parameter and tooling record.
Factory Acceptance Checklist
- PWD-M-15 model, 6.6 kg weight and 700 × 260 × 300 mm size are verified.
- Motor, drive, controls and destination electrical ratings are recorded.
- Included tooling matches approved product drawings.
- Manual and automatic cycle steps match the agreed scope.
- Guards, emergency stops and restart behavior are demonstrated.
- The buyer’s cord and product complete repeated cycles.
- Dimensions, symmetry, appearance and finished strength meet criteria.
- Cycle time, manual finishing, rejects and rework are recorded.
- Changeover, cleaning and fault recovery are demonstrated.
- Manuals, drawings, documentation and open actions are listed.
- Final 76.5 × 31 × 34 cm / 17 kg packing data are verified.
Information Needed for a Proposal
- Accepted frog button, disk buckle or bracelet sample.
- Product dimensions, pattern, loop, knot and end positions.
- Cord construction, size, properties and sample.
- Required manual and automatic cycle steps.
- Finishing method: cut, tie, sew, bond or heat treatment.
- Target output, shifts, batch size and pattern change frequency.
- Visual, dimensional and mechanical acceptance criteria.
- Voltage, phase, frequency, destination and plant standard.
- Guarding, controls, documents and commissioning requirements.
- Delivery address and schedule.
Email the package to yangle990706@gmail.com. BOYAN will return a technical scope and sample-test plan.
Compare Related BOYAN Machines
For circular hair-tie and ring products, review the fully automatic ring winding machine. For large dog-leash and hemp-rope decorative wrapping, review the large circular rope winding machine. These machines address different workpiece scales and patterns.
Browse the BOYAN winding machines category for related equipment.
Use our winding machine selection guide to compare control, material, package, speed, tension and application data before requesting a configuration.
Frequently Asked Questions
Does the machine complete a finished frog button?
The source title supports frog-button or cheongsam-button winding but does not define cutting, knotting, sewing or bonding. The included cycle must be confirmed from the sample.
What product sizes are supported?
No size range is published. Provide minimum and maximum drawings and samples for tooling review.
What materials can it process?
No verified material list is published. Cord construction, diameter, stiffness and surface are confirmed by sample trial.
Does it include PLC and servo control?
The verified record identifies a motor only. PLC, servo and touchscreen must be stated in the final proposal if required.
What does high speed mean?
No numerical rate is published. Accepted output is measured with the real product, cord, finishing and operator tasks.
Is it CE certified?
The listing shows an “EU standards compliant” label. BOYAN will verify applicable documentation and model scope rather than treating the label as proof.
Can it make bracelets?
The source title names bracelet winding. Suitability depends on bracelet diameter, material, pattern, closure and sample result.
Request a Frog-Button Application Review
Send the accepted product, drawing, cord, full cycle, quality criteria, target output and destination electrical standard. BOYAN will identify the suitable tooling and distinguish winding from any downstream knotting or finishing.
Contact yangle990706@gmail.com for a frog button winding machine proposal based on verifiable product data.
