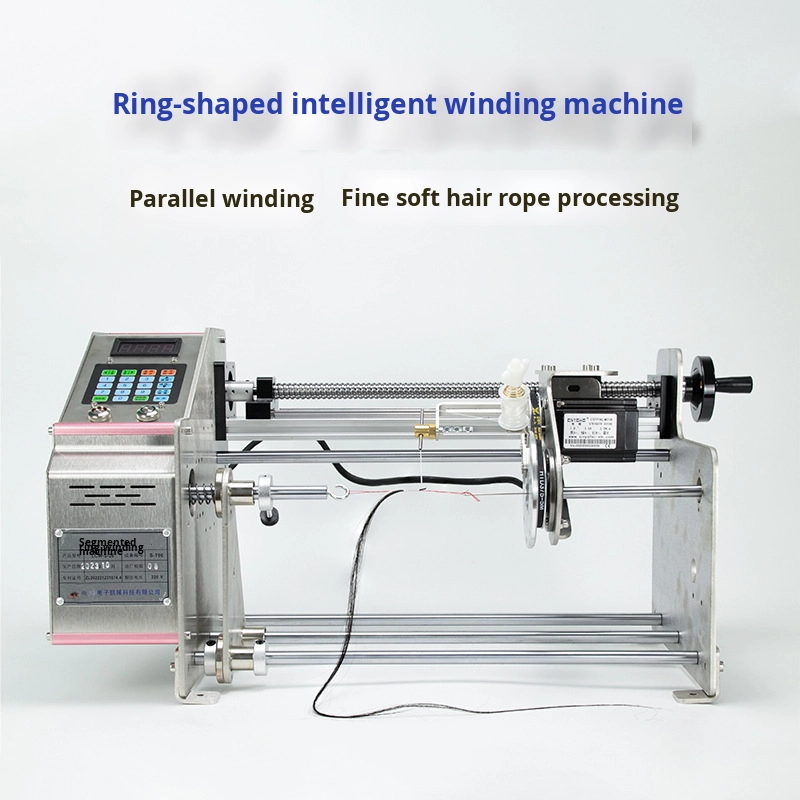

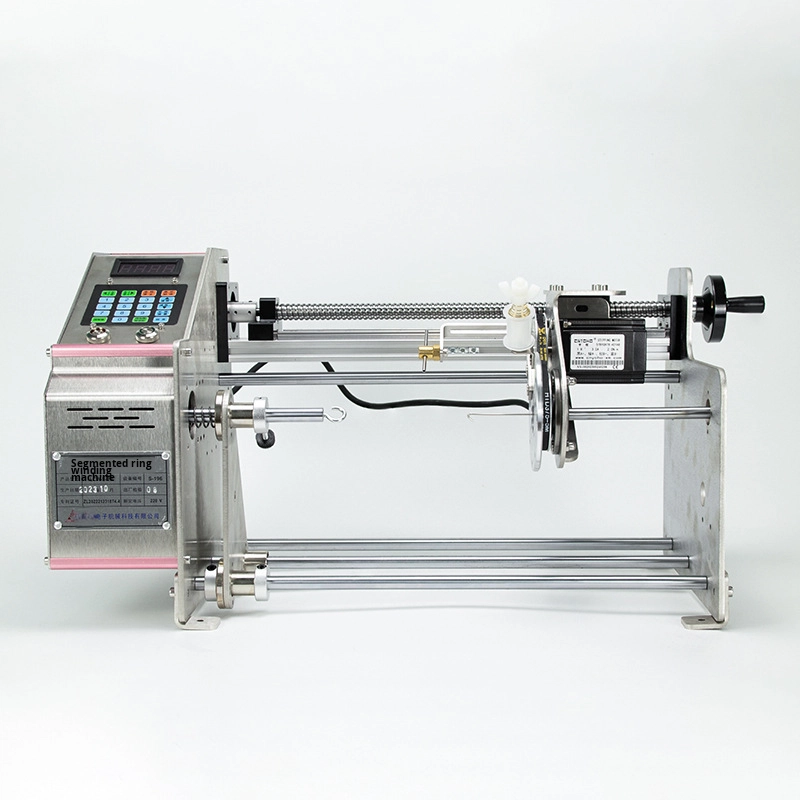

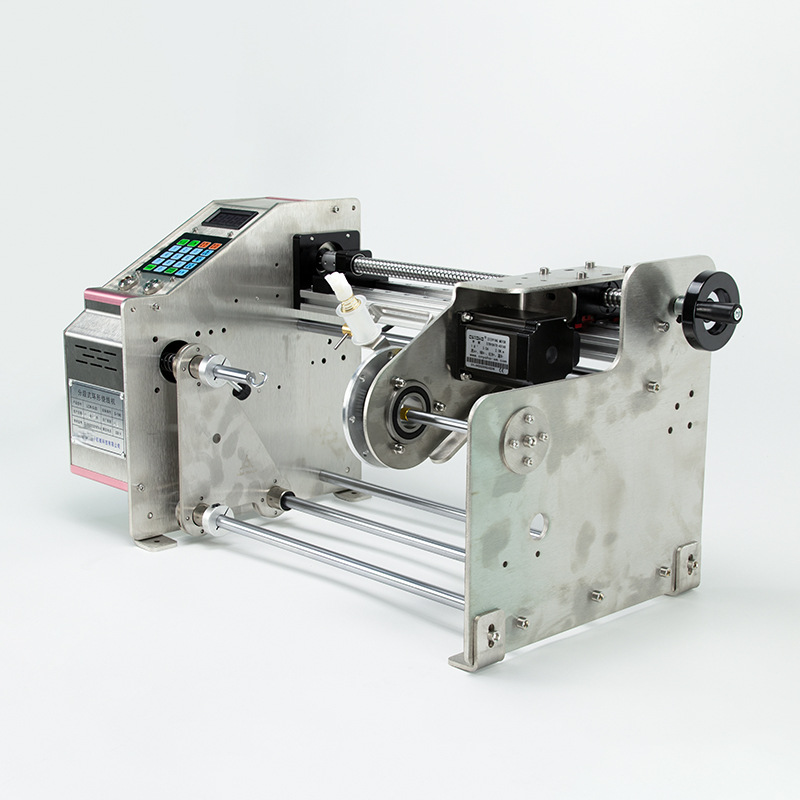

Fully automatic ring winding machine is a BOYAN production platform for forming compatible flexible material around a circular product or ring-shaped workpiece. The source title identifies automatic ring winding, hook-style hair-rope or hair-tie work and circular winding. The verified reference lists a model field corresponding to LCW-S-15, a machine weight of 15 kg, a motor as the core component and an overall dimension field of 960 × 330 × 410. Because the dimension unit and final nameplate spelling are not published clearly, both will be confirmed in the technical proposal.
Ring winding and braiding are not interchangeable terms. A project may involve wrapping a cord around a ring, feeding elastic material into a hook-style hair accessory, forming a closed loop or preparing a circular package for another process. BOYAN first defines the incoming material, workpiece and finished geometry. Send drawings, samples and a short process video to yangle990706@gmail.com for an application review.
Fully Automatic Ring Winding Machine: Quick Selection Guide
A fully automatic ring winding machine may fit a job when the material path, circular workpiece and cycle can be defined and repeated. The reference record supports a motor-driven machine and a ring-winding application, but it does not publish PLC, servo, touchscreen, automatic feeder, tension system or cycle-rate data. Those features must not be inferred from the word “automatic.”
- Reference model field: LCW-S-15, subject to final nameplate confirmation.
- Machine weight: 15 kg.
- Core component: motor.
- Dimension field: 960 × 330 × 410, with unit to be confirmed.
- Source applications: automatic ring winding, hook-style hair rope or hair tie work and circular winding.
- Open limits: product diameter, material range, speed, tension, tooling, electrical input and output rate.
The right machine is determined by a measurable finished sample. Photos can show the general product, but BOYAN needs the ring diameter, cross-section, winding coverage, material construction, joint method and acceptable appearance.
Verified Data and Required Confirmation
| Item | Available reference | BOYAN confirmation |
|---|---|---|
| Model field | Corresponds to LCW-S-15 | Final nameplate and quotation model |
| Machine weight | 15 kg | Net weight for supplied build |
| Core component | Motor | Motor rating, drive and control arrangement |
| Dimension field | 960 × 330 × 410; unit not stated | Units and approved outline drawing |
| Individual package | 103 × 44 × 49 cm | Final export packing dimensions |
| Package gross weight | 80 kg | Final shipping weight and explanation of weight difference |
| Process name | Automatic ring winding and circular winding | Exact workpiece, line path and cycle |
| Hair-accessory context | Hook-style hair rope/hair tie in source title | Approved sample and finished-product drawing |
| Control, speed and tension | Not published | Hardware and measurable acceptance criteria |
| Electrical input | Not published | Voltage, phase, frequency and power |
The 15 kg machine weight and 80 kg package gross weight differ substantially. Packing material, accessories or a source-data error may explain the difference, but the record does not say. BOYAN requires a final packing list and verified weights before freight calculation. This page does not silently treat either value as confirmed for the ordered build.
Define the Ring-Winding Process
Before selecting a fully automatic ring winding machine, describe the process in steps. State whether the machine begins with an open core, closed ring, preformed elastic loop, hook component or another workpiece. Explain where the material starts, how it is anchored, how many wraps or layers are required, how the end is finished and how the part is removed.
If “braiding” is required, provide a sample and explain whether strands interlace during this machine cycle or whether the machine only winds a previously braided cord. The source title includes a translated braiding reference but does not describe a braiding mechanism, carrier count or braid pattern. BOYAN therefore does not advertise an unverified integrated braider.
The joint or closure method is also important. Sewing, knotting, adhesive, heat, crimping or another finish may be completed manually or by separate equipment. Identify what must be included in the automatic cycle and what remains an operator task.
Workpiece Geometry and Tooling
A circular product requires tooling that supports the part without unwanted deformation. Provide outside diameter, inside diameter, cross-section, thickness, stiffness, allowable marks and dimensional tolerance. If several sizes share one machine, list the full range and expected changeover frequency.
The fixture must retain the workpiece during acceleration and winding, then release it without damage. A soft elastic loop behaves differently from a rigid ring or hook component. The available record does not state tooling size or supported diameter, so BOYAN will review fixture concept and clearance from drawings and samples.
For a fully automatic ring winding machine, tooling should be included in the factory acceptance test. If change parts are required, label them by product and document the adjustment method. The quotation should state how many product sizes and tooling sets are included.
Material Selection and Sample Testing
The source title places the machine in a hair-rope or hair-tie context, but does not publish a material list. Elastic cord, braided cord, textile yarn, ribbon, decorative thread and other flexible products can differ in stretch, twist, abrasion, memory and surface sensitivity. Compatibility must be confirmed rather than assumed.
- Provide fiber or polymer type and construction.
- State diameter, width or linear density and tolerance.
- Describe elasticity and length under a defined load.
- Identify coating, lubrication, texture, metallic elements or adhesives.
- State minimum bend radius and allowable surface marks.
- Send representative material and accepted finished samples.
Elastic material needs a reference tension because a ring can change size after it relaxes. A trial should measure the finished product after an agreed conditioning period. Decorative material may need visual inspection under defined lighting. These conditions should be recorded for the fully automatic ring winding machine acceptance test.

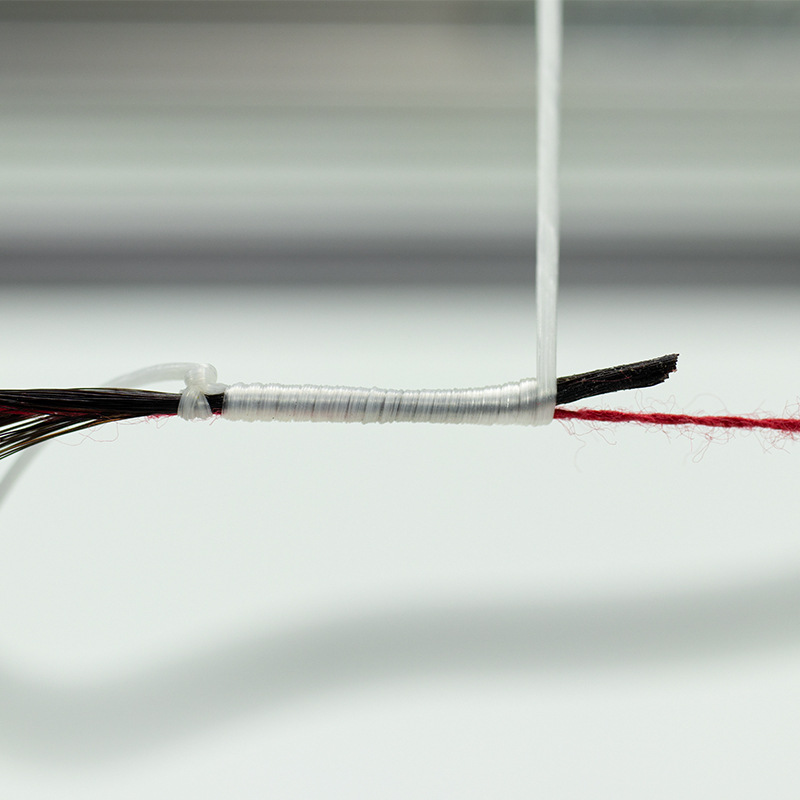

Tension, Coverage and Product Appearance
Tension influences ring diameter, coverage, material damage and finish. The legacy page claimed precision tension control, but the verified record does not identify a tensioner, sensor, range or tolerance. If tension is critical, the buyer should specify the target, unit, measurement point and acceptable variation.
Coverage requirements may include wrap count, pitch, overlap, gaps, color placement and edge alignment. Provide a drawing or marked sample. A broad statement such as “uniform winding” is not enough for engineering acceptance. BOYAN can turn the approved sample into visual and dimensional criteria.
When multiple layers are required, state how the layer changes and where the ends should finish. If the product has a hook, connector or seam, explain how the winding passes that feature. The tooling and control sequence of a fully automatic ring winding machine depend on these details.
Five Applications to Evaluate
1. Elastic Hair Tie Ring Winding
The machine can be evaluated for compatible elastic-loop products when ring diameter, cord behavior, wrap pattern and finish are defined. Final suitability requires a sample trial.
2. Hook-Style Hair Rope Products
The source title names a hook-style hair-rope application. Provide hook dimensions, retention method, material path and required joint or end finish so BOYAN can confirm the cycle.
3. Circular Decorative Wrapping
A fully automatic ring winding machine may be evaluated for wrapping decorative thread or cord around a compatible circular base. Surface appearance and color transition should be part of acceptance.
4. Braided Cord Ring Preparation
The machine may wind a previously braided cord into a circular product. An integrated braiding operation is not assumed; identify whether braiding occurs upstream or inside the requested system.
5. Custom Circular Components
Other flexible circular products can be reviewed from drawings and samples. Diameter, cross-section, stiffness, material and cycle steps determine feasibility.
Automation Scope and Operator Tasks
“Fully automatic” should be converted into an agreed scope. Ask whether the operator loads a workpiece, threads material, starts the cycle, cuts the end, secures a joint or unloads the finished part. The reference record does not describe feeding, cutting, tying, joining or discharge mechanisms.
A technical proposal should show the cycle from ready state to finished product and mark every manual intervention. If automatic feeding or discharge is required, state incoming orientation, buffer quantity and interface with upstream or downstream equipment. Sensors and fault responses must be defined for missing material, missing workpiece, jam and incomplete cycle.
Cycle time should include loading and unloading. A fully automatic ring winding machine may still require operator work between cycles, so output should be measured from a representative production trial rather than from winding motion alone.
Speed and Production Rate
No numerical speed or pieces-per-hour value is published in the source record. Working rate depends on ring size, number of wraps, material stretch, fixture, anchoring, finishing and operator tasks. BOYAN does not present an invented “high-speed” number.
Provide present output, target output, shift pattern, lot size and changeover frequency. During a trial, record cycle time, material breaks, incomplete products, manual corrections and rejected pieces. An accepted rate must meet appearance and dimensional criteria.
Acceleration may need to be limited for elastic or lightweight parts. Too much acceleration can distort the ring or pull the material from its anchor. The fully automatic ring winding machine should be tuned for stable product quality, not only peak motion.
Electrical and Control Requirements
The verified record identifies a motor but does not publish motor rating, drive type, PLC, servo, touchscreen, voltage, phase or installed power. The old page’s PLC and servo statements are therefore removed. Buyers should submit destination electrical data and required control functions.
If recipes, counters, fault history, password levels, remote support or data export are needed, list them separately. BOYAN will identify whether they are standard or optional. A motor-driven automatic machine does not automatically include every smart-control feature.
For integration, provide start, stop, ready, fault and safety-interface requirements. Any upstream feed or downstream transfer must be included in the line responsibility matrix.
Safety and Risk Assessment
Rotating fixtures, workpieces and material can create entanglement, impact and pinch hazards. Automatic loading or discharge can add trapping points. The installation needs suitable guarding, emergency stops, safe setup procedure, electrical isolation and trained operators.
The buyer should assess loading, threading, anchoring, automatic cycle, jam clearing, product removal and maintenance. General principles are available in the OSHA machine-guarding guidance; local regulations and plant standards govern the final system.
Never reach into a moving ring or fixture. A stopped motor may still leave stored elastic or rotational energy. The operating procedure for a fully automatic ring winding machine should define isolation and verification before intervention.
Recommended Sample Trial
- Identify the product: approve the ring, hook, core or loop drawing.
- Verify materials: label material construction, lot and sample condition.
- Define the cycle: mark manual and automatic steps from load to unload.
- Set acceptance: agree diameter, coverage, appearance, joint and rate criteria.
- Install tooling: check retention, clearance, release and guarding.
- Run slowly: observe anchoring, tension, tracking and product distortion.
- Increase rate: tune acceleration and motion while maintaining quality.
- Repeat: demonstrate multiple cycles and a normal size change.
- Condition and inspect: remeasure elastic products after the agreed rest period.
Retain accepted samples with the test record. If several sizes or materials are required, test representative minimum, maximum and difficult cases.
Factory Acceptance Checklist
- Model, machine weight and outline data match approved documents.
- Motor, drive, controls and destination electrical ratings are recorded.
- Each included tooling set fits the approved product.
- Manual setup and automatic cycle are demonstrated.
- Guards, emergency stops and restart behavior meet the agreed design.
- The machine runs the buyer’s material and representative products.
- Ring diameter, coverage, appearance and joint criteria are inspected.
- Cycle time, operator steps and rejected parts are recorded.
- Changeover, cleaning and normal fault recovery are demonstrated.
- Manuals, drawings, parts and open actions are listed.
- Final packing dimensions and gross weight are verified before shipment.
This FAT defines what “fully automatic” means for the ordered fully automatic ring winding machine.
Information Needed for a Proposal
- Finished ring or hair-accessory drawing and accepted sample.
- Workpiece type, size range, stiffness and allowable marks.
- Winding material construction, size, stretch and samples.
- Wrap pattern, count, coverage, colors and finish method.
- Required automatic and manual cycle steps.
- Target output, shifts, batch size and changeover frequency.
- Quality tolerance, inspection method and conditioning time.
- Voltage, phase, frequency, destination and plant standard.
- Guarding, controls, integration, documents and commissioning needs.
- Delivery address and required schedule.
Email the package to yangle990706@gmail.com. BOYAN will confirm the process, tooling, automation boundary and test method.
Compare Related BOYAN Machines
For a larger fixed-shaft and motor-tailstock winding platform, review the large coil winding machine. For a compact PLC and touch-screen winding platform where the material and package are customized, review the intelligent touch screen winding machine. These are separate equipment types with different verified data.
Browse the complete BOYAN winding machines category for related options.
Use our winding machine selection guide to compare control, material, package, speed, tension and application data before requesting a configuration.
Frequently Asked Questions
Does the machine braid hair ties automatically?
The source title includes a translated braiding reference but does not describe a braiding mechanism. BOYAN will confirm whether the requested process is wrapping, winding, forming or integrated braiding from the sample and cycle.
What ring diameter range is supported?
No diameter range is published. Provide minimum and maximum product drawings for tooling and clearance review.
Does it use PLC and servo motors?
The verified record identifies a motor only. PLC, servo and touchscreen are not confirmed standard features and must appear in the final proposal if required.
What materials can it process?
The source title supports a hair-rope or hair-tie context but no verified material list. Compatibility is confirmed from material data and samples.
What is the production speed?
No numerical speed or output is published. Cycle rate must be tested with the actual ring, wrap count, finish and operator tasks.
Why is package gross weight much higher than machine weight?
The record lists 15 kg machine weight and 80 kg package gross weight without explanation. BOYAN will verify both values and the final packing list before shipping.
Can the machine be customized?
Product tooling and automation can be evaluated from drawings, samples and a written cycle. Feasibility, cost, lead time and acceptance criteria are confirmed in writing.
Request a Ring-Winding Review
Send the finished product, ring or hook drawing, winding material, cycle steps, quality tolerance, target output and destination electrical standard. BOYAN will check whether LCW-S-15 is the right reference platform and will identify every unverified option before quotation.
Contact yangle990706@gmail.com for a fully automatic ring winding machine proposal based on verifiable inputs and a written acceptance plan.
